Short Answer
A bathroom mirror should usually sit far enough above the basin to clear splash, taps, cleaning access, and the visual weight of the vanity, while still keeping the mirror useful at face height. For many Australian bathrooms, a practical starting point is about 100-200 mm between the top of the basin, vanity splashback, or tap zone and the bottom edge of the mirror.
That range is not a fixed installation rule. A low inset basin with a short mixer may suit a tighter gap, while an above-counter basin, tall mixer, wall-mounted tap, stone splashback, or mirror cabinet may need more clearance. The best answer comes from the actual vanity height, basin shape, mirror size, and the people who use the bathroom every day.
If you are still choosing the mirror, start by comparing styles at LED Mirror World AU before finalising wall marks or power positions. LED mirrors are not just glass: the bracket location, cable exit, touch controls, demister, and lighting type can all affect where the bottom edge should sit.
Key Takeaways
- Use 100-200 mm above the basin or splashback as a common planning range, then adjust for the room.
- Measure from the highest practical obstruction, not only from the vanity benchtop.
- Above-counter basins and tall mixers usually need a larger gap below the mirror.
- The bottom edge must work with eye level; do not push the mirror so high that shorter users struggle.
- Backlit mirrors need enough clean wall around the mirror for the glow to look even.
- Plan wiring and mounting before drilling tiles, especially for hardwired LED bathroom mirrors.
- Always check the product manual and use a licensed electrician for fixed bathroom electrical work.
Start With the Highest Point Around the Basin
The most reliable way to decide mirror clearance is to identify the highest point the mirror needs to clear. In some bathrooms, that is the vanity benchtop. In many modern bathrooms, it is actually the rim of an above-counter basin, the top of a tall mixer, a stone splashback, a wall-mounted tap plate, or a raised ledge behind the basin.
Measure the finished vanity area after allowing for benchtop thickness, basin height, and tapware. Then mark the proposed mirror bottom edge on the wall. A mirror that starts too close to the basin can look cramped, collect water spots more easily, and make daily cleaning awkward. A mirror mounted too high can leave the basin area feeling disconnected from the reflection.

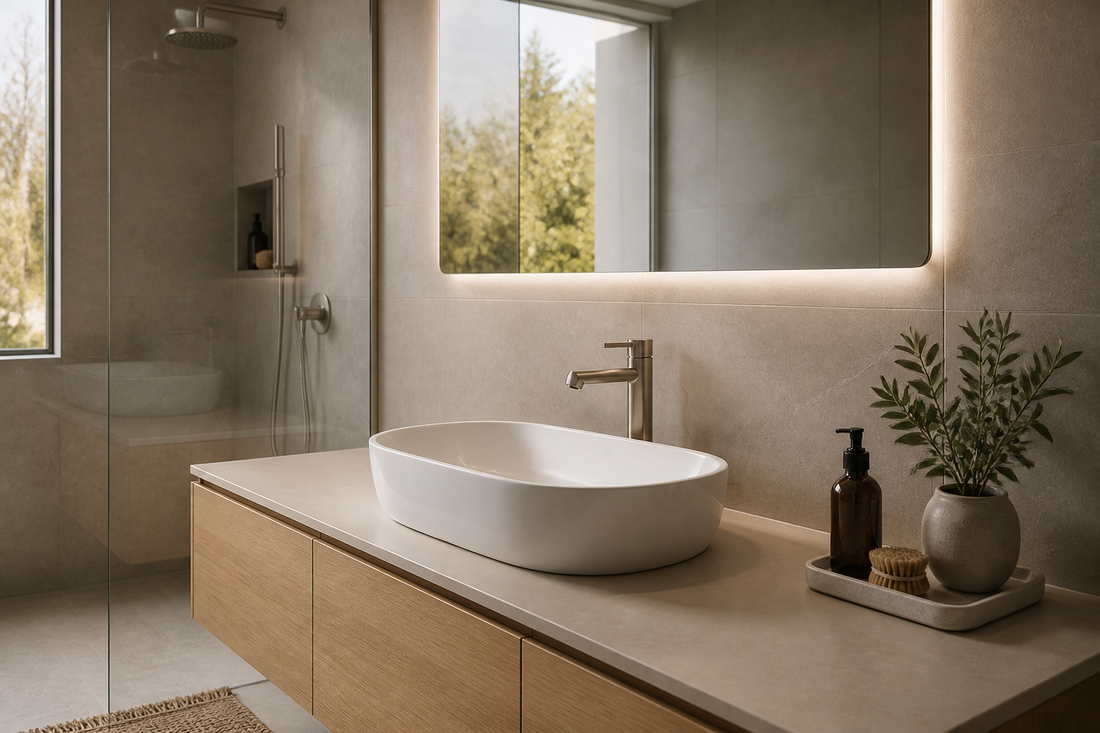

For a simple inset basin, the bottom of the mirror can often sit closer to the vanity because the tap and splash zone are lower. For a vessel basin, the basin itself may add 100-160 mm or more above the benchtop, so the mirror bottom usually needs to move up. The goal is a calm practical gap, not a number copied from a showroom photo.
A Practical Clearance Guide
The table below gives useful starting points for planning. Use it to mark the wall, then check the reflection, wall proportions, product manual, and electrical layout before installation.
| Bathroom setup | Starting clearance below mirror | What to check |
|---|---|---|
| Inset basin with short mixer | About 100-150 mm above the vanity or splashback area. | Make sure the tap does not visually crowd the mirror bottom. |
| Above-counter vessel basin | About 150-250 mm above the basin rim or tap zone. | Check that the mirror is not pushed too high for face-level use. |
| Tall mixer or wall-mounted tap | Clear the highest tap point with enough cleaning room. | Allow room around handles, spout projection, and splash marks. |
| Stone or tiled splashback | Usually above the splashback, or deliberately overlapping only if the design supports it. | Confirm tile lines and mirror brackets do not fight each other. |
| Mirror cabinet | Enough clearance for doors, depth, and hand access. | Check door swing, cabinet projection, and user head position. |
| Family or accessible bathroom | Adjust to user needs rather than following a style-only range. | Accessibility requirements may override general design guidance. |
Balance Basin Clearance With Eye Level
Basin clearance is only half the decision. The mirror still needs to work when someone stands at the vanity. If you raise the bottom edge too far above a vessel basin, the centre of the mirror can end up too high, especially with a small round mirror or shallow rectangle. That can make shorter adults and children look into the lower edge rather than the middle of the mirror.
Mark the proposed bottom edge, then mark the top edge using the actual mirror height. Stand where you brush your teeth, wash your face, shave, or apply skincare. The mirror should show the user's face naturally without bending or stretching. If two adults use the bathroom and there is a large height difference, choose a taller mirror rather than forcing the clearance to solve every problem.
This is where shape matters. A tall rectangle gives more vertical viewing room and is usually easier to place above a basin. A round mirror may look elegant, but its usable reflection narrows near the bottom and top. An oval can be a useful compromise because it keeps a lighter shape while giving more vertical reflection.
How Mirror Shape Changes the Gap
Rectangular mirrors are the easiest to plan because the bottom edge is straight and the reflection area is predictable. If you are designing around a standard vanity, the rectangle LED bathroom mirror collection is a practical place to compare proportions before marking the wall.
Round mirrors need more visual judgement. A 900 mm round mirror may have a bottom edge that sits much lower than a rectangle with the same visual presence, so the basin gap can feel tighter. Tape the full circle on the wall rather than just marking a centre point. Step back and check whether the round form looks balanced above the basin.
Oval mirrors suit narrow vanities, powder rooms, and ensuites where you want more vertical reflection without a wide block of glass. If basin clearance is tight but the wall is narrow, browse the oval LED bathroom mirror range and compare heights carefully. The extra vertical shape can keep the mirror usable even when the bottom edge needs to clear a taller basin.
Backlit and Frontlit Mirrors Need Different Wall Space
With a standard plain mirror, the gap below the mirror is mostly about reflection, splash, and proportion. With an LED mirror, the lighting adds another layer. Backlit mirrors need clean wall around the mirror so the glow can spread evenly. If the bottom edge sits extremely close to a basin, shelf, stone ledge, or tap, the light can feel trapped or uneven.
Frontlit mirrors need to light the face. If you lift the mirror too high just to create a generous basin gap, the front lighting may no longer land naturally for shaving, makeup, skincare, or contact lenses. Dual-lit mirrors need both considerations: breathing room for the back glow and face-level alignment for task lighting.
For bathrooms where the mirror is part of the room's ambient lighting, compare backlit bathroom mirror options and leave enough wall around the bottom edge for the glow to read cleanly. For daily grooming, test the proposed height while standing at the basin, not only from the doorway.
Plan Around Splash, Cleaning, and Daily Use
The closer the mirror sits to the basin, the more likely it is to collect water spots, toothpaste marks, soap residue, and hand splash. That does not mean every mirror needs a huge gap. It means the gap should suit how the basin is used. A guest powder room with a small basin may be fine with a tighter visual gap. A busy family bathroom with children, a high-flow mixer, and frequent face washing may need more room.
Cleaning access matters too. You should be able to wipe the bottom edge of the mirror and the wall or splashback below it without working around a tap that blocks your hand. If a vessel basin sits very close to the wall, a mirror mounted just above it can create a hard-to-clean strip that looks untidy quickly.
Think about the mirror controls as well. Many LED mirrors have touch controls on the glass. If the bottom controls sit too close to the basin or tap, they may be awkward to reach or more exposed to splash. Confirm the control position on the exact product page before choosing the final bottom-edge height.
Power and Mounting Can Change the Final Height
LED bathroom mirrors often need more planning than standard mirrors because they may be hardwired, plug-in, anti-fog, dimmable, Bluetooth-enabled, frontlit, backlit, or mounted with specific brackets. The cable exit position on the wall should suit the selected mirror, not a generic guess. Some mirrors have a central cable position, while others may have a different connection zone or bracket layout.
If the power point or cable has not been set yet, decide the mirror model before rough-in wherever possible. Mark the mirror outline, bracket zone, and cable exit area on the wall. Then have the installer confirm whether the planned position avoids studs, pipes, tile cuts, basin fittings, and fixing conflicts. The guide to power points and wiring for LED bathroom mirrors is useful if you are still planning this stage.
Fixed bathroom electrical work should be completed by a licensed electrician. Do not hide loose extension leads, cut plugs, or improvise joins behind a mirror to make a tight installation look clean. A neat mirror position is not worth an unsafe electrical setup.
Recommended Products to Compare
For a simple vanity where you want predictable bottom-edge clearance, the Backlit Rectangle Vanity Mirror with Touch Sensor and Anti-Fog Function is a sensible comparison point. The rectangular form makes it easier to align with the basin, vanity, splashback, and wall power position.
For bathrooms where grooming light matters as much as wall ambience, the Frameless Double LED Lighted Bathroom Mirror is worth reviewing. When a mirror has both front and back lighting, test the height from the user's normal standing position so the light is useful, not just attractive.
For narrow walls, taller reflections, or bathrooms where a vessel basin pushes the mirror upward, the Long Oval LED Bathroom Mirror can help keep the reflection practical without taking over the full vanity width.
If the gap question is part of a wider size decision, read the LED mirror installation height guide as a companion article. Height, basin clearance, and mirror size should be planned together.
Common Mistakes to Avoid
The first mistake is measuring from the benchtop when the basin rim or tap is the real obstruction. This often happens with above-counter basins. The mirror may look fine in a sketch, then feel cramped once the basin and mixer are installed.
The second mistake is prioritising a tile line over the people using the mirror. Aligning with grout can look tidy, but it should not make the reflection awkward. If a grout line forces the mirror too high, adjust the layout, choose a different mirror size, or accept a less rigid tile alignment.
The third mistake is choosing the mirror after electrical rough-in. A cable placed for one mirror can be wrong for another. If you later change from a plain mirror to a backlit or mirror cabinet style, the cable and bracket zones may no longer work neatly.
The fourth mistake is assuming more gap is always more premium. A large empty space between basin and mirror can make the vanity wall feel disconnected. The best installations look intentional because the basin, tap, mirror bottom, reflection height, and wall lighting all relate to each other.
Final Verdict
As a practical starting point, leave about 100-200 mm between the basin, splashback, or highest tap zone and the bottom of the bathroom mirror. Increase the gap for above-counter basins, tall mixers, wall-mounted tapware, mirror cabinets, or heavy splash zones. Reduce it only when the mirror still clears fittings, cleans easily, and works at face height.
For LED bathroom mirrors, do not decide the gap in isolation. Check the mirror shape, lighting type, bracket location, touch controls, cable exit, and user eye level before drilling. A backlit mirror needs breathing room for the glow; a frontlit mirror needs the light to land where the face actually is.
The right clearance should feel practical from the basin and balanced from the doorway. Mark the wall with tape, check the reflection, confirm the product instructions, and coordinate electrical work before the final installation.
Related LED Mirror Guides
FAQ
How far above a basin should a bathroom mirror sit?
About 100-200 mm above the basin, splashback, or tap zone is a useful starting point for many bathrooms. Adjust for basin height, mixer height, mirror size, user height, and the product manual.
Do vessel basins need more mirror clearance?
Usually, yes. Above-counter basins raise the splash and visual obstruction point, so the mirror bottom often needs to sit higher than it would above an inset basin.
Should I measure from the vanity or the basin?
Measure from the highest practical obstruction. That may be the basin rim, mixer, splashback, wall tap plate, or ledge rather than the benchtop itself.
Can the mirror sit directly on top of a splashback?
Sometimes, but only if the design, mounting system, cleaning access, and product instructions allow it. Many bathrooms look better with a small clear gap above the splashback.
Does an LED mirror need more gap than a normal mirror?
It can. Backlit mirrors need wall space for even glow, and LED mirrors may have controls, cable exits, demisters, or brackets that affect the final position.
What if the mirror looks too high after clearing the tap?
Choose a taller mirror, a different shape, a lower-profile tap, or a revised basin layout. Do not solve tap clearance by making the mirror uncomfortable to use.
Should I install the mirror before or after the basin?
Plan the mirror before final rough-in and tiling, but confirm final marks against the actual vanity, basin, tap, and mirror dimensions before drilling.
Do I need an electrician for an LED bathroom mirror?
Use a licensed electrician for fixed wiring, new outlets, moved outlets, or hardwired connections in a bathroom. Always follow the product instructions and local electrical requirements.
